Reference
Eni Porto Torres
Description
Electrical cabin
Client:
Imequadri
Reference
Eni Porto Torres
Imequadri
| Type | Prefab dim. 14,00x12,00x3,30 H |
|---|---|
| Structure | Galvanized steel S275JR |
| Wall | Wall panel mm 60 thick PIR (rigid expanded polyisocyanurate) |
| Roof | Roof panel mm 50+40 thick PIR (rigid expanded polyisocyanurate) |
| Doors | Prepainted aluminum profiles type 50 mm |
| Floor | Technical access floor UNIFLAIR 60x60 floor tiles calcium sulfate A30 raised height 30 cm |
| System | Electrical system 230/400 V, emergency lighting, grounding system copper bar 200 mm² |

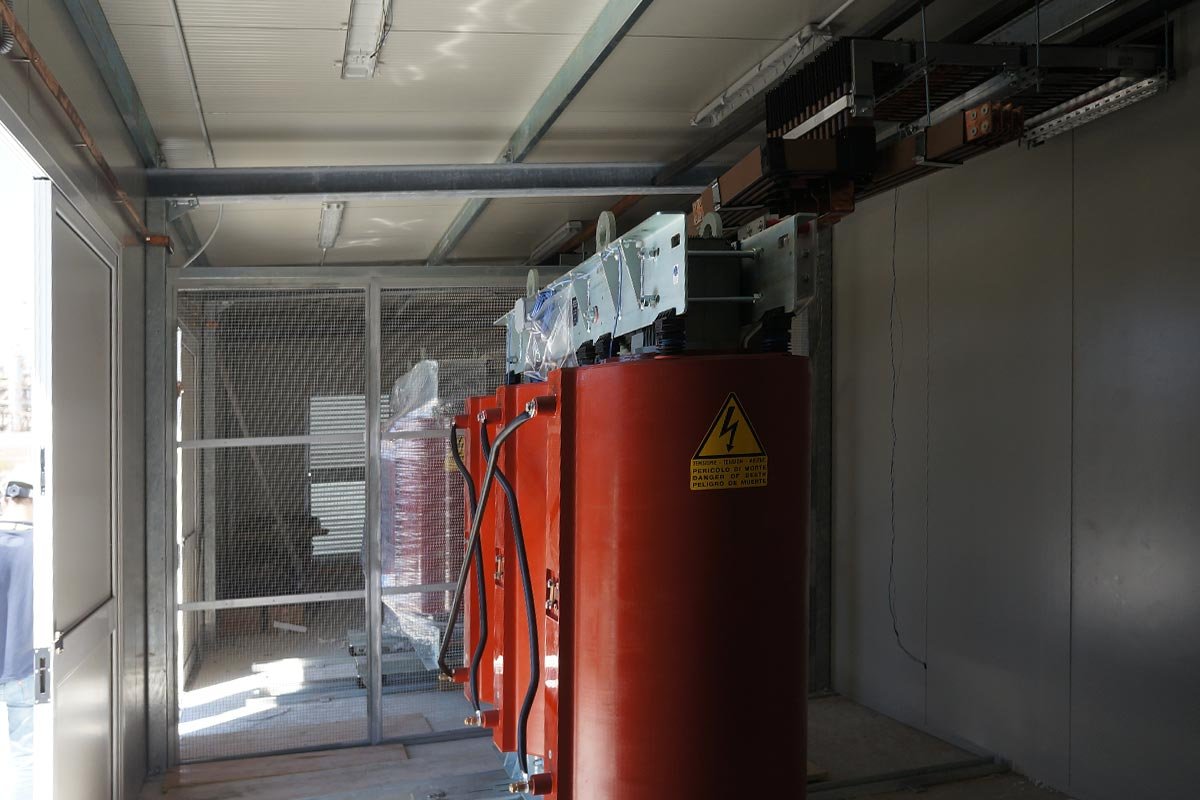

| Special Systems | Transformers room: N° 2 fan 2.500 m³/h, air filter with automatic cleaning, air exchange in 2' |
| HVAC | SAMSUNG 12.000 BTU + 48.000 BTU |
